Marsh Drive Bridge Replacement

Marsh Drive Bridge Replacement Over Walnut Creek

Contra Costa County Public Works Department and Bridgeway Civil Constructors, Inc have teamed up once again to replace the Marsh Drive Bridge over Walnut Creek. The two-stage project began in June 2021 and is expected to be completed by October 2022. The purpose of the project is to replace the existing bridge that was built in 1938 with a new 5 span cast in place/prestressed voided slab bridge that will have two lanes of vehicular traffic and a 10-foot-wide separated bike and pedestrian facility on the south side of the bridge in its final configuration. All superstructure has been designed to be supported by cast-in-drilled-hole concrete piles and cast in place concrete columns. The new bridge will be raised approximately seven feet to meet hydraulic standards with 500 linear feet of roadway approach work to improve the roadway alignment and horizontal curve. Other work items included in the project include bridge removal, utility relocation, cast in place retaining wall, decorative bridge rail, rock slope protection and improvements to the Iron Horse Trial and Floodplain access roads.

A bridge with graffiti on it and trees in the background.

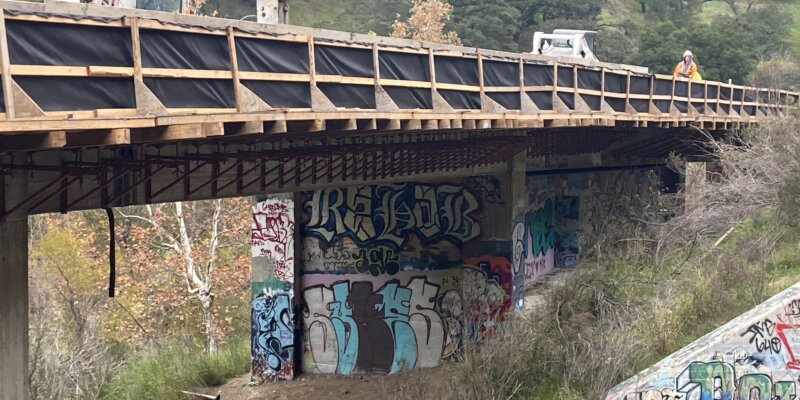

SR 84 Stonybrook & Alameda Creek Overhead Bridge

SR 84 Stonybrook & Alameda Creek Overhead Bridge

The project is located along multiple locations of SR 84/Niles Canyon Rd. from SR 238 to SR 680. The project consists of a new cast-in-place flat slab bridge that spans the Stonybrook Creek and demolition and overhang widenings at the Alameda Creek Overhead. The Stonybrook Creek bridge required 550 LF of cast-in-drilled-hole concrete pile, 470 CY of Concrete, a temporary creek diversion system to work in the Stonybrook Creek, falsework and excavation shoring. The Alameda Creek Overhead required temporary supports for the overhang and barrier rail demolition and also served as formwork for placing back the overhang. The overhang demolition and replacement of the Alameda Creek Overhead Bridge overhang was performed during multiple 55-Hour Full Road Closures. The work included 277 CY of Rapid Strength Concrete (RSC) over the Union Pacific Railroad, California ST-75 Bridge Railing, and Anchor Blocks at various locations of the bridge. Work began June 15th, 2021 and is scheduled to conclude the end of May 2022.

A truck is parked on the side of a road.

SR 680/SR 84 Interchange

SR 680/SR 84 Interchange

This project consists of 7 total bridge structures. Three of the bridges are new structures and consist of 1 flyover across SR-84, 1 pre-cast girder bridge, and 1 cast-in-place post tensioned box girder over Vallecitos Creek. The remaining bridges are widenings on, NB/SB SR 680 at Scotts Corner, SB SR 680 at Calaveras Rd, and NB/SB SR 680 at Koopman Rd. The project requires over 25,700 cubic yards of Concrete. Along with the 7 bridges, other elements include 20 Retaining Walls (single-sided and 2-sided retaining walls, Mechanically Stabilized Embankment Walls [MSE]), over 2.6 Million pounds of bar reinforcing steel, 142 Ground Anchors, over 23,000 LF of Driven Steel Pile, 580 LF of Cast-In-Drilled-Hole Concrete Pile, over 17,000 LF of Concrete Barrier Rail and partial demolition of 3 Bridge Overhang locations to widen the existing bridges (SB Rte. 680-Calaveras Rd, NB/SB Rte. 680-Scotts Corner, NB/SB Rte. 680-Koopman Rd.) . Contract was awarded in February 2021 and work began June 2021 and is scheduled to conclude and the end of the 2023 season.

A group of construction workers standing on top of concrete.

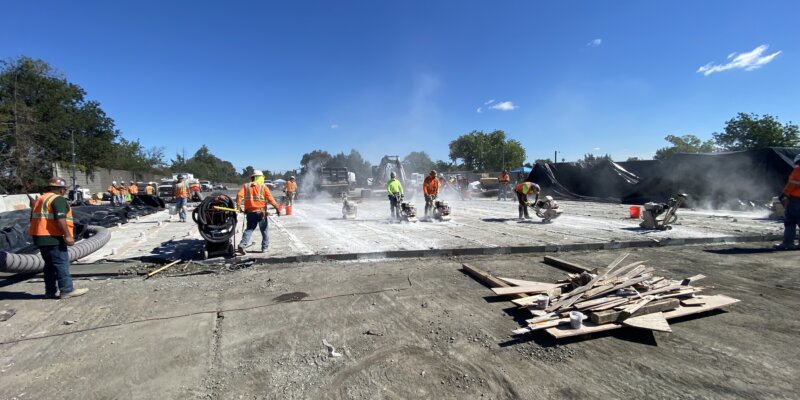

SR 880 Deck Replacement

SR 880 Deck Replacement

This project consisted of removing and replacing a bridge deck (29.67’ wide by 458.29’ long) on Southbound SR 880 while preserving the existing cast-in-place girders, bent caps and hinges. The work occurred in Alameda Creek, an active water channel which required a water diversion system. To ensure no damage occurred to the existing superstructure two temporary support systems were required, longitudinally and transversely. Other aspects of the work included a slope stability analysis, bird deterrent, rapid strength concrete (RSC), joint seal replacements, carbon fiber reinforced girders and accelerated work to complete the project within the in-creek working window from June 15th, 2021, to October 15th, 2021. The temporary support systems reinforced the bridge structure and existing girders as crews cut and removed 3-ton panels off the bridge deck. This work was performed behind k-rail placed along SR 880 while still allowing vehicles to exit the southbound off-ramp to Alvarado-Niles Blvd. Pedestrian routes were also maintained underneath the bridge on the Alameda Creek Trail. Crews completed the in-creek work prior to the October 15th deadline and final work for the Joint Seal Replacements concluded March 25th, 2022.

A view of the ocean from above shows a road and some buildings.

SR 1 Bodega Bay Bridge

SR 1 Bodega Bay Bridge Construction

The project consists of the installation of twelve 84” cast in drilled hole concrete piles, construction of 12 cast in place concrete piers, installation of twelve 24” cast in drilled hole concrete piles, placement of nearly 4,000 cubic yards of concrete, installation of transverse and longitudinal prestressing, installation of bridge and deck drainage systems, installation of 950 lineal feet of architectural picket railing, installation of 1,800 lineal feet of tubular handrailing, construction of 1,820 lineal feet of cast in place concrete barrier rail, and nearly 90,000 square feet of bridge staining. This project is located on Highway 1 that runs through Bodega Bay, CA in a highly sensitive environmental area. The construction will take place over two seasons with work in the first season consisting of the installation of the 84” CIDH and construction of the cast in place concrete piers. The construction during the second season will consist of installation of twelve 24” CIDH, installation of falsework, construction of the new bridge, installation of the architectural picket railing, and construction of the cast in place concrete barrier rail.

A group of people on motorcycles in the dirt.

SR 99 Sacramento Bridge Deck Replacement

SR 99 Sacramento Bridge Deck Replacement Project

The Highway 99 Sacramento Bridge Deck Replacement Project consisted of demolishing the existing bridge deck, replacing the bridge deck with pre-cast girders, placing Ultra High-Performance Concrete (UHPC) in the joints of the pre-cast girders, replacing 250 LF of Type 60MG center median rail, removing and replacing 1,000 SF of masonry block soundwall, placing 7,000 SF of polyester concrete overlay, and placing 215 tons of rubberized hot mix asphalt (RHMA). To complete the work, a 100-hour full closure of SR 99 from Business 80 to 47th Avenue was required. The project’s intent was to replace the severely damaged bridge deck that was constructed nearly 50 years ago. The intent of the project was to complete all work within a 100-hour closure and Bridgeway was able to complete the work within 94 hours, 6 hours ahead of schedule.

A large crane is being used to move logs.

Pollock Pines Highway 50 Retaining Wall Construction

Highway 50 Retaining Wall

The Highway 50 Retaining Wall Construction Project consists of constructing a 428 foot long retaining wall made up of 58 Cast In Drilled Hole (CIDH) piles ranging from 60 feet to 115 feet in length, 252 ground anchors that will be drilled through the CIDH piles, forming and pouring a barrier slab, installing a new barrier rail, installing timber lagging between the CIDH piles, and repaving of the highway. The retaining wall construction is intended to prevent further landslides in the area which have previously damaged the highway. The project will be constructed in two stages, with the first stage consisting of installing the CIDH piles, and the second stage consisting of installing the ground anchors, timber lagging, barrier slab, and repaving the highway.

A construction site with many wooden posts and poles.

Port of Stockton Fyffe Avenue Bridge

Port of Stockton Fyffe Avenue Grade Separation

The Fyffe Grade Separation Project will construct a new roadway along West Fyffe Avenue and a 115-foot-long bridge to span Navy Drive and the shared Union Pacific Railroad, BNSF Railways, and Central California Traction Company tracks, providing a direct connection to the Port of Stockton West Complex. Phase 1 of the project will construct 1,500 linear feet of a temporary detour road, realign, and reconstruct 2,000 linear feet of the Golf Course Road, and place 170,000 cubic yards of embankment fill. During Phase 2, the bridge that will span Navy Drive and the Railroad tracks will be constructed using pre-cast I-girders and pre-cast bridge deck panels. The abutment will be constructed on concrete piles and are up to 40-feet tall and 100-feet wide. Phase 2 also includes construction of 2,000 linear feet of West Fyffe Avenue. The ultimate roadway will accommodate four-lanes of traffic; two 12-foot lanes in both directions with a two-foot-wide raised median separating traffic. The roadway will include one-foot inside shoulders adjacent to the median and eight-foot outside shoulders. Phase 2 of the project will also realign 1,500 linear feet of McCloy Avenue, and construct a signalized intersection at McCloy Avenue and Navy Drive.

A road with rocks and gravel under it

Chico Rte. 99 Multi-Bridge Retrofit & Widening

Chico Retrofit & Widening

The Route 99 bridge retrofit and widening project consists of retrofitting 5 existing bridges by constructing new barrier slabs, adding new concrete barrier rails, and installing Carbon Fiber Reinforced Polymer Strips (CFRP). The retrofit of these bridges is intended to extend the overall working life of these structures. The bridge widening occurred at the Western Canal located along the Route 99 Corridor between Gridley and Chico. The widening added 6 feet of shoulder as a preventative measure to increase public safety within the area. The project was constructed in 3 stages, with the first two stages consisting of the retrofit for the 5 existing bridges and the third stage that was dedicated to Western Canal as the allowed window for construction was from January through March. The widening of Western Canal consisted of partial demolition of the existing structure, pouring of new footings, pier walls, and abutments. The final portion of work at Western Canal consisted of installing falsework for the widening of the bridge deck surface.

A bridge that is under construction over the road.

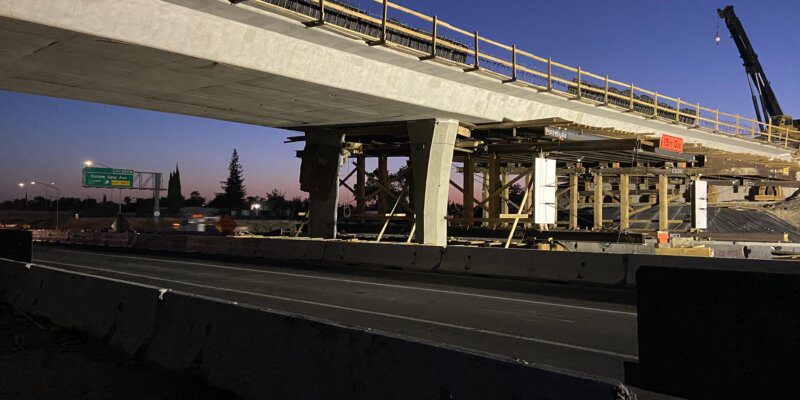

San Joaquin SR99 Farmington Bridge Replacement

Farmington Bridge Replacement

This bridge project was funded through Caltrans State Highway Operation and Protection Program. Our work at the Farmington Road Bridge Replacement project over SR99 in the City of Stockton consists of replacing the existing bridge to improve vertical clearance in order to eliminate bridge strikes and cost repairs. The new Post-Tensioned Box Girder Bridge replacement design is approximately 50 feet wide and 190 feet long with two columns supports at the center of the bridge span. The project includes extensive utility work and landscaping with decorative fencing and architectural slope paving.
